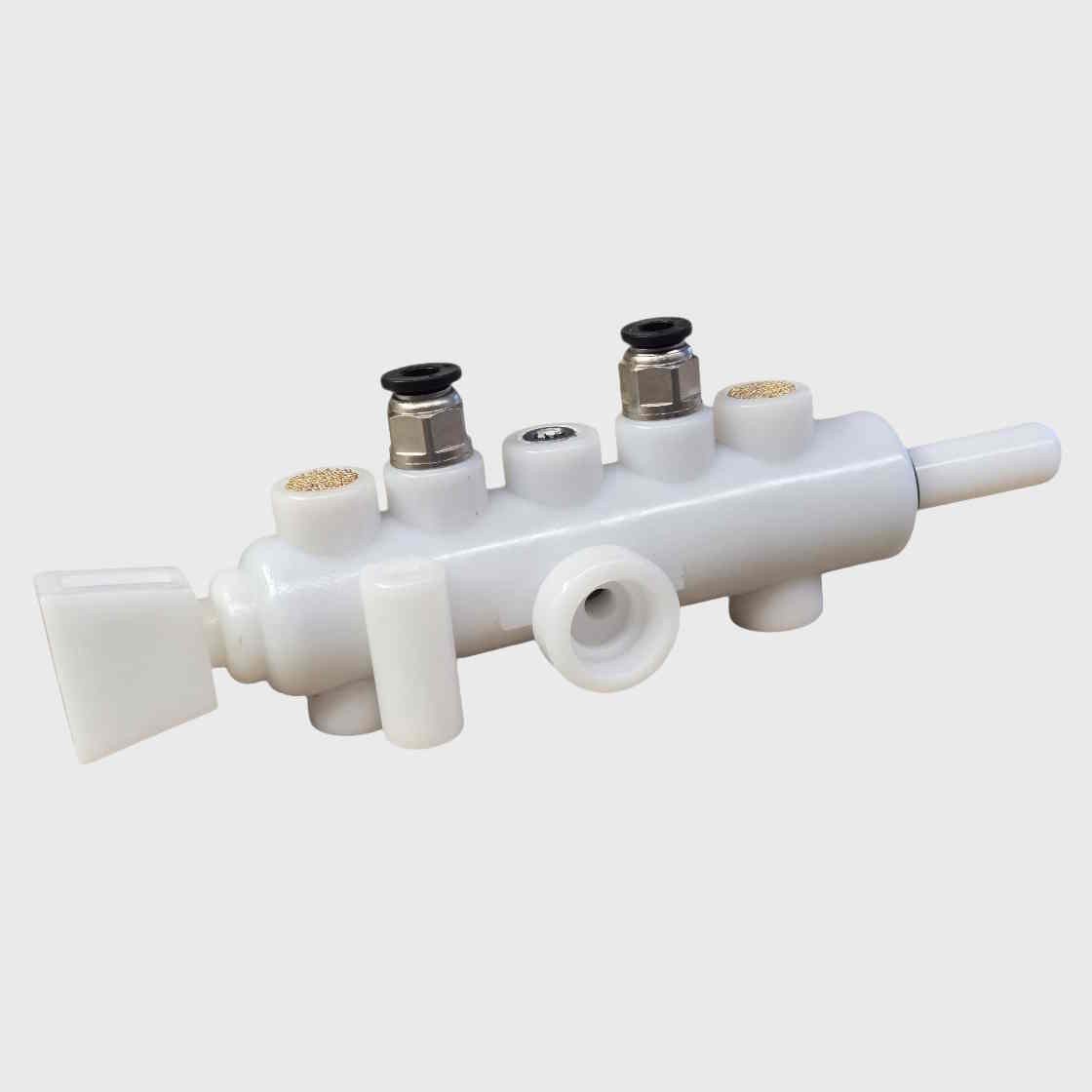

Air VALVE, Wheel Clamping. ST4009611

Product Description

Foot controlled AIR VALVE for the wheel clamping function on many SnapOn, John Bean (JBC), and AccuTurn tire changers.

This valve has the AIR INLET PORT on the RIGHT SIDE when looking at it from the foot pedal end. If you need the valve that has the inlet on the left side, order our ST4017159.

Used on the following models:

AccuTurn: 3450, 3500, 4400, 4401, 4402, 4502, 4602.

John Bean (JBC): 8950, 8960, 8990.

SnapOn: EEWH302A, EEWH303A, EEWH304A, EEWH305A, EEWH306A.

OEM / Aftermarket Interchanges:  4019680, 4009611, ST4009611 .

Tech. Note: 4-way Valves that control double-acting Cylinders are often misdiagnosed because a problem in the Cylinder can cause air to vent (leak) from the Valve. If the symptom is air leaking from the Valve and you want help diagnosing it, contact our Customer Service at 702-983-5889.
